The features of our ScanCube.

Your photo studio is delivered ready to use and contains :
1 photo case
1 camera tripod
Connections: 1 x 3m angled USB cable, 1 x 3m mini USB cable, and, depending on the configuration, one or two Meanwell 220V/24V 280W external power supplies.
Optional turntable pack :
1 e-view360 tray
a tray and 1 PVC disc
1 tray power cable, approx. 50cm long
For optimal use of all our photo studios, we recommend using a computer with an Intel i5 or i7 processor and at least 16GB of memory.

Lights


The system controls 6 independent light sources, each of which can be adjusted from 0 to 100%. The "Full Light Control" technology developed by ScanCube allows the lighting environment to be adapted to the characteristics of each product. The four direct light sources placed in the corners at the front of the cabinet are made up of high quality LED panels. The lighting system is completed by two backlighting sources placed at the back and under the floor of the cabinet. This backlighting provides a perfectly white background and is used for the automatic cropping process.

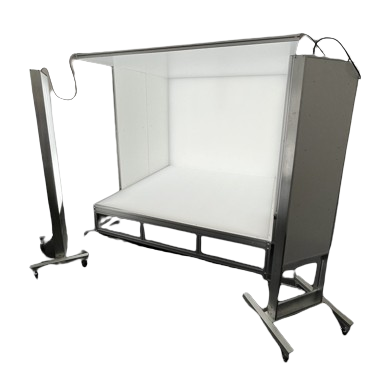

Structure

The photos studios are composed of :
A structure that avoids angular points, undesirable reflections and shadow areas, made of aluminium profiles and technical aluminium honeycomb panels.
A wide front access without a permanent door to allow easy positioning of the products to be photographed and positioning of the camera at the desired angle and the distance required by the dimensions of the product, while avoiding a source of unsightly reflections.
Walls designed to diffuse or reflect light with six adjustable light sources. The backlit studio floor is designed to support a 35kg load.
An upper compartment closed by a sliding trapdoor with a quick release system to install exclusive accessories such as the Topshot, the adjustable vertical shooting support, the laser beam centring system or the nylon wire suspension.

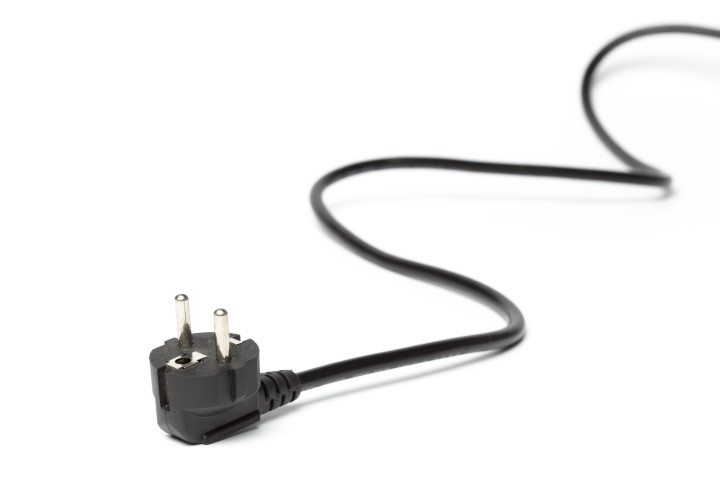

Electrical characteristics


The ScanCube has a secure 24V DC power supply. Depending on the configuration, the power supply consists of one or two Meanwell 220V/24V external power supplies (supplied with the cabinet). The cabinet is equipped with 4 24V sockets to power accessories or options such as the turntable.

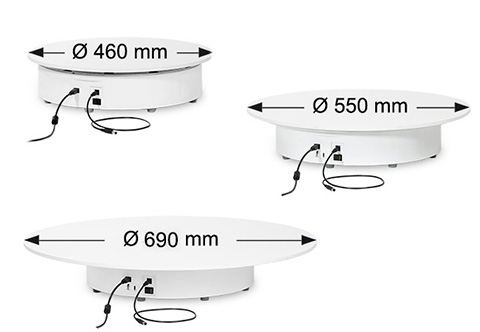

Turntable

The turntable allows, thanks to its control via the EasyScanCube software, the realization of animations and 360 degrees view of your product photos. It has a total weight of 7kg and can support a load of 35kg. The turntable is different for each ScanCube, its dimensions are adapted to the chosen photo studio. The turntable is powered by 24V DC from the cabinet and is connected to the computer via a USB2 cable. The sequential rotation of the turntable is automated in order to synchronise it with the shot. The turntable can be used outside the housing, with an external power supply.


Our ScanCube

204

51x63x70

308

60x70x88

516

78x88x124

626

87x97x169

ScanCube 204: for HD product photos

The ScanCube 204 is a mini photo-video studio dedicated to shooting small products. Ideal for producing packshots, the ScanCube 204 can be equipped with an e-view360 turntable to produce animated visuals. Combining compactness, ease of use and advanced features, the ScanCube 204 photo-video studio is a proven solution, adopted by many e-tailers and manufacturers in the eyewear, jewellery and cosmetics industries.
The ScanCube 204 is ideal for your product photos of :
Eyewear
Jewellery, watchmaking
Cosmetics
Pharmacy and parapharmacy
Children's shoes and small leather goods

Example of visual content

ScanCube 204 capacity

The 204 photo studios can photograph any object with dimensions smaller than :

Without the turntable : - for vertical shooting*: max. product base = 47 x 41 cm | - when shooting from the front*: width = 41 cm / height = 48 cm
With the turntable : when shooting from the front*: max. diagonal of the product base = 30 cm / height = 37 cm
The turntable consists of a turntable and a removable top plate with a diameter of 460 mm.

* The maximum dimensions of the products that can be photographed in the 204 boxes are given as an indication; depending on the shape of the products, these dimensions may be increased or decreased. To work with ease, it is advisable to remove 2 to 4 cm from the values indicated.

Dimensions and weight

Interior dimensions: 49 (W) x 55 (D) x 52 (H) cm | External dimensions: 51 x 63 x 70 cm | Packed dimensions: 62 x 73 x 88 cm | Cabinet weight: 34 kg | Weight of box + packaging + pallet: 52 kg

THEY CHOOSE THE SCANCUBE 204

This mini studio is super practical and efficient. Anyone who has never photographed a bottle of wine cannot understand how indispensable the ScanCube is

 - Rouge-Blanc
Attend a demonstration

ScanCube 308 : the packshot machine

The ScanCube 308 photo-video studio is the perfect tool for high definition photography of medium-sized objects. The ScanCube 308 can be equipped with an e-view360 turntable to create animated packshots and product presentation videos that can be immediately published on your e-commerce site or social networks. Combining ease of use with advanced features, the ScanCube 308 photo and video studio adapts to your needs to enable you to produce attractive, professional-quality images.
The ScanCube 308 video photo studio is ideal for your :
Leather goods
Games and toys
Sports and leisure
Telephony
Hardware and tools
Tableware and small decoration

Examples of products

ScanCube 308 capacity

The 308 photo studios allow you to photograph any type of object with dimensions smaller than :

Without the turntable : for vertical shooting*: max. product base = 56 x 50 cm | when shooting from the front*: width = 48 cm / height = 66 cm
With the turntable : when shooting from the front*: max. diagonal of the product base = 40 cm / height = 55 cm
The turntable consists of a turntable and a removable overlay with a diameter of 550 mm and a height of 110 mm.

* The maximum dimensions of the products that can be photographed in the ScanCube 308 photo-video studio are given as a guide; depending on the shape of the products, these dimensions may be increased or decreased. For ease of use, it is advisable to remove 3 to 5 cm from the values indicated.

Dimensions et weight

Interior dimensions: 56 (W) x 62 (D) x 70 (H) cm | External dimensions: 60 x 70 x 88 cm | Packed dimensions: 73 x 82 x 107 cm |Cabinet weight: 47 kg

Weight of box + packaging + pallet: 70 kg

THEY CHOOSE THE SCANCUBE 308

Easy to use tool without having a lot of graphic and photo skills, brings a real time saving. The 360° view is great and very useful for presenting our products on our website. Our products are showcased and the picture is just amazing! I recommend !

 Wholesaler of video game accessories
 - Under Control
Attend a demonstration

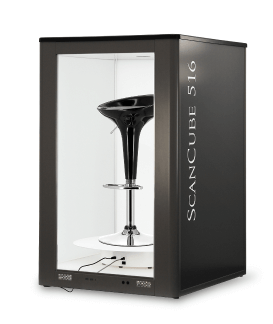

ScanCube 516: an L-sized photo studio

The ScanCube 516 is a mid-sized photo studio, widely used for photographing home décor, textile products, luggage and leather goods. Ideal for quickly producing visuals for an e-commerce website, the ScanCube 516 can be equipped with an e-view360 turntable to produce HTML animations and video presentations. Renowned for its ease of use, the ScanCube 516 is equipped with advanced features that can be adapted to different user profiles, from the novice to the packshot professional.
The ScanCube 516 Photo Studio is ideal for your product photos of :
Leather goods and luggage
Interior design
Small furniture
Textile and fashion on bust

Examples of products

ScanCube 516 capacity

The ScanCube 516 photo studio can photograph any object smaller than :

Without the turntable : for vertical shooting*: max. product base = 76 x 68 cm | when shooting from the front*: width = 68 cm / height = 102 cm
With the turntable : when shooting from the front*: max. diagonal of the product base = 56 cm / height = 90 cm
The turntable consists of a turntable and a removable over-tray with a diameter of 710 mm.

* The maximum dimensions of the products that can be photographed in the 516 boxes are given as an indication; depending on the shape of the products, these dimensions may be increased or decreased. For ease of use, it is advisable to subtract 3 to 5 cm from the indicated values.

Dimensions et weight

Internal dimensions: 76 (W) x 80 (D) x 106 (H) cm | External dimensions: 78 x 88 x 124 cm | Packed dimensions: 90 x 123 x 144 cm

Box weight: 75 kg | Weight of the box + packaging + pallet: 108 kg

THEY CHOOSE THE SCANCUBE 516

8 months ago we tested the ScanCube 516 to complement a competing system we already had. Today, I put the competing hardware in the closet and bought a second ScanCube. This is the best photo studio I know

 - Chausty

Since February 2011, our Forbach store has taken photos of its products with a ScanCube for its website, posters and flyers. We took a pragmatic approach and we served as a pilot site to measure the benefits of this new technology, validate its functional ease and its adaptation to our business. Today the Cora group has acquired a dozen ScanCubes.

M. Meier
 - Cora
Attend a demonstration

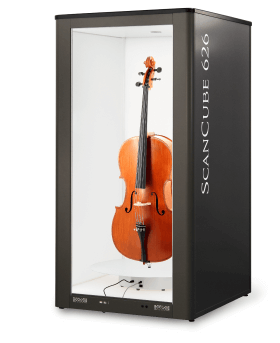

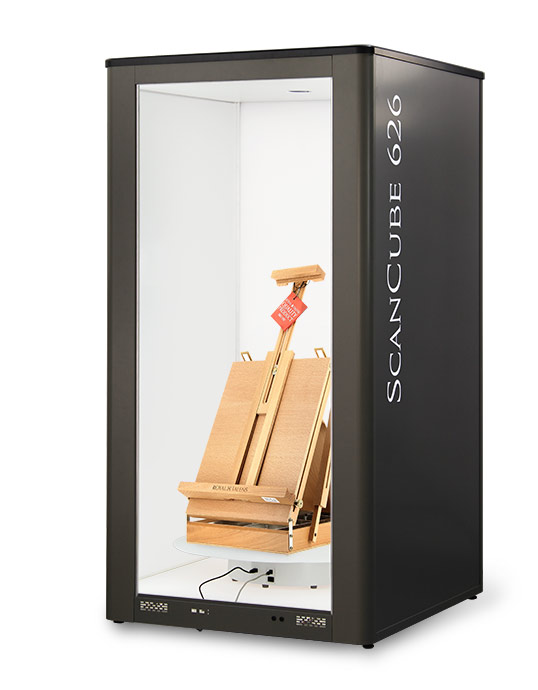

ScanCube 626: your XL photo studio

The 626 is the largest photo studio in the ScanCube range. It allows you to easily photograph a wide variety of products, from the smallest to the largest, from a pair of shoes to a cello. The ScanCube 626 can be optionally equipped with a turntable to allow you to produce 360 ​​packshots, videos and animations for your e-commerce site internally.
The ScanCube 626 is ideal for your product photos of:
ready to wear
luggage storage
home appliance
sports and leisures

Examples of products

ScanCube 626 Capacity

Our largest photo studio, the ScanCube 626 allows the shooting of any type of object with dimensions less than:

Without the turntable: in vertical shot*: maximum base of the product = 83 x 77 cm | when shooting from the front*: width = 76 cm / height = 145 cm
With the turntable: when viewed from the front*: maximum diagonal of the base of the product = 64 cm / height = 134 cm
The turntable is made up of a turntable and an 800 mm diameter removable top plate.

The max. products likely to be photographed in the boxes 626 are given for information only; depending on the shape of the products, these dimensions can be revised upwards or downwards. To work with ease, it is advisable to remove 3 to 5 cm from the values ​​indicated.

Dimensions and weight

Interior dimensions: 85 (W) x 89 (D) x 151 (H) cm | External dimensions: 87 x 97 x 169 cm | Packed dimensions: 98 x 135 x 186 cm

Box weight: 98 kg | Weight of the box + packaging + pallet: 139 kg

THEY CHOOSE THE SCANCUBE 626

100 photos per hour, ultra-simplified retouching and perfect results. No need to say more… Yes: the turnover and profitability of our e-commerce site is up sharply. The ScanCube is one of our best investments.

 - Fanny Chaussures
Attend a demonstration
